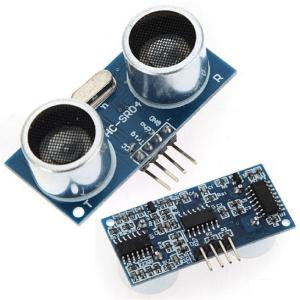

Ultrasonic Distance Measuring Sensor Module HC-SR04

Description

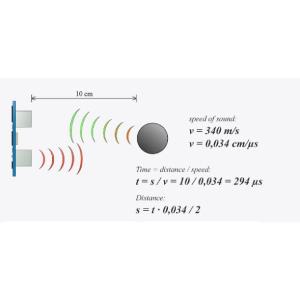

The HC-SR04 ultrasonic sensor uses sonar to determine distance to an object like bats or dolphins do. It offers excellent non-contact range detection with high accuracy and stable readings in an easy-to-use package. From 2cm to 400 cm or 1” to 13 feet. It operation is not affected by sunlight or black material like Sharp rangefinders are (although acoustically soft materials like cloth can be difficult to detect). It comes complete with ultrasonic transmitter and receiver module.

Specifications:
Power Supply :+5V DC
Quiescent Current : <2mA
Working Currnt: 15mA
Effectual Angle: <15°
Ranging Distance : 2cm – 400 cm/1″ – 13ft
Resolution : 0.3 cm
Measuring Angle: 30 degree
Trigger Input Pulse width: 10uS
Dimension: 45mm x 20mm x 15mm

Applications:
The ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.

Package Includes:
1 X Ultrasonic Distance Measuring Sensor Module HC-SR04
