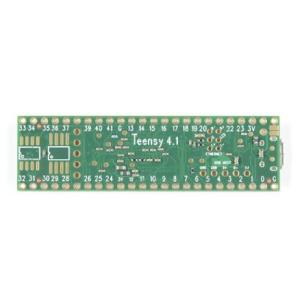

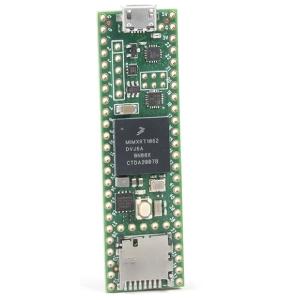

Teensy 4.1 Usb Arm Cortex-m7 At 600mhz Teensy41 Dev-16771

Description

The Teensy 4.1 is a high-performance microcontroller development board that offers exceptional speed, versatility, and a wide range of features. Powered by an ARM Cortex-M7 processor running at 600 MHz, the Teensy 4.1 delivers incredible processing power for demanding applications.

Specifications:
ARM Cortex-M7 at 600 MHz
Float point math unit, 64 & 32 bits
7936K Flash, 1024K RAM (512K tightly coupled), 4K EEPROM (emulated)
QSPI memory expansion, locations for 2 extra RAM or Flash chips
USB device 480 Mbit/sec & USB host 480 Mbit/sec
55 digital input/output pins, 35 PWM output pins
18 analog input pins
8 serial, 3 SPI, 3 I2C ports
2 I2S/TDM and 1 S/PDIF digital audio port
3 CAN Bus (1 with CAN FD)
1 SDIO (4 bit) native SD Card port
Ethernet 10/100 Mbit with DP83825 PHY
32 general purpose DMA channels
Cryptographic Acceleration & Random Number Generator
RTC for date/time
Programmable FlexIO
Pixel Processing Pipeline
Peripheral cross triggering
Power On/Off management

Applications:
Powerful Processor: ARM Cortex-M7 at 600 MHz for lightning-fast performance.
Expanded Peripherals: Includes Ethernet, USB host, SD card, and more for versatile connectivity.
Large Memory: Teensy 4.1 has 8MB flash memory and 1MB RAM for ample storage and processing capabilities.
Arduino IDE Compatibility: Easily program using the familiar Arduino environment.
Versatile Applications: Ideal for IoT, robotics, audio processing, and more.

Package Includes:
1 x Teensy 4.1 Usb Arm Cortex-m7 At 600mhz Teensy41 Dev-16771
