Sensor Shield V5 Expansion Board For Arduino Uno R3

Description

The latest Arduino Controller Sensor Shield V5.0 is expansion board to retains the advantages of version V4.0 on the basis of stack design, PCB Immersion Gold processing technology. Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers. Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.
You can easily connect with usual analog sensors by using this expansion board. For Arduino beginners, you do not have a headache for the cumbersome and complex circuit connection, the sensor extends the true sense of the board to simplify the circuit which can easily connect the commonly used sensor.

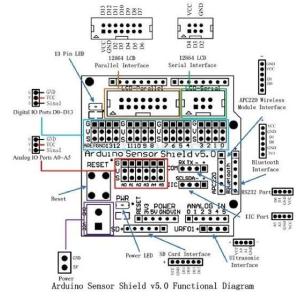

Specifications:
PIN13 LED Pilot
Digital IO Ports D0-D13
Analog IO Ports A0-A5
Reset Button
Power In
Power LED
SD Card Interface
Ultrasonic Interface
RS232 Interface(TTL)
Bluetooth Interface
APC220 Interface
IIC Interface
12864 LCD Parallel Interface
12864 LCD Serial Interface
Color: blue and black.
Item size: 57 * 57 * 19mm.
Net weight: 26g.
Package weight: 35g.

Package Includes:
1 x Sensor Shield V5 Expansion Board For Arduino Uno R3
