PCF8574 IIC I2C Serial Interface Adapter Module IIC I2C LCD Module

Description

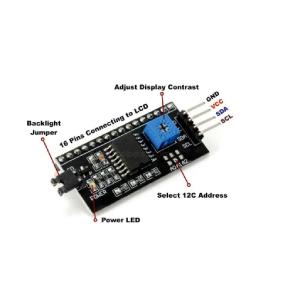

This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it’s own address).

Specifications:
5V power supply.
Serial I2C control of LCD display using PCF8574.
The backlight can be enabled or disabled via a jumper on the board.
Contrast control via a potentiometer.
Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
Size ：41.6 x 19.2 mm.

Applications:
Microcontroller Projects
Ideal for Arduino, Raspberry Pi, ESP32, and other microcontrollers where GPIO pins are limited.
Educational Projects
Great for learning and prototyping I2C communication with LCD displays.
IoT Applications
Perfect for displaying real-time data in IoT systems.

Package Includes:
1 x PCF8574 IIC I2C Serial Interface Adapter Module IIC I2C LCD Module
