MFRC522 RC522 RFID Card Reader Writer Module

Description

Mifare RC522 is the highly integrated RFID card reader which works on non-contact 13.56mhz communication, is designed by NXP as a low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.
MF RC522 use the advanced modulation system, fully integrated at 13.56MHz with all kinds of positive non-contact communication protocols. Support 14443A compatible answer signal. DSP deal with ISO14443A frames and error correction. Furthermore, it also supports rapid CRYPTO1 encryption to validate Mifare series products. MFRC522 support Mifare series higher speed non-contact communication, duplex communication speed up to 424 kb/s. As a new family member in 13.56MHz RFID family, MF RC522 has many similarities to MF RC5200 and MF RC530 and also has more new features.

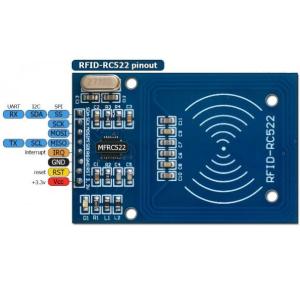

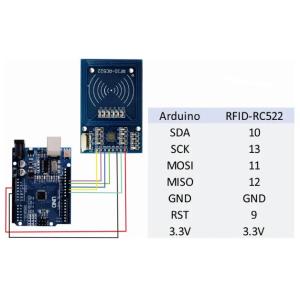

This module can fit directly in handheld devices for mass production. The module uses the 3.3V power supply and can communicate directly with any CPU board by connecting through SPI protocol, which ensures reliable work, good reading distance.

Specifications:
Voltage: DC 3.3V (Do not use 5V supply)
Operating Current :13-26mA
Idle Current :10-13mA
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire
Dimensions: 40mm × 60mm
Module Interface SPI Data Transfer Rate: Max. 10Mbit/s
Card reading distance ：0～30mm （Mifare1 card）

Applications:
RC522 RFID commonly use in attendance systems and other person/object identification applications. If you are looking for a module to read and write RFID tags, the RC522 RFID 13.56 MHz Reader Writer Module is a good option. It is affordable, easy to use, and has a wide range of applications. The RC522 RFID 13.56 MHz Reader Writer Module can use for a variety of applications, such as:
Access control
Payment
Inventory management
Time and attendance
Animal identification
Medication adherence

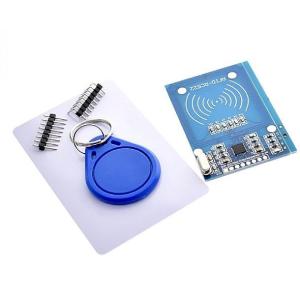

Package Includes:
1 x MFRC522 RC522 RFID Card Reader Writer Module
