L298N Motor Driver Module

Description

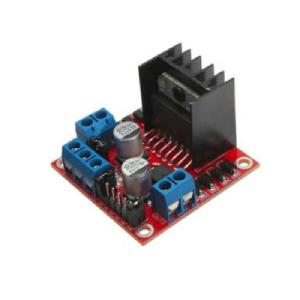

L298N Motor Driver Module is a high-power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.

Specifications:
Driver Model: L298N 2A
Driver Chip: Double H Bridge L298N
Motor Supply Voltage (Maximum): 46V
Motor Supply Current (Maximum): 2A
Logic Voltage: 5V
Driver Voltage: 5-35V
Driver Current:2A
Logical Current:0-36mA
Maximum Power (W): 25W
Current Sense for each motor
Heatsink for better performance
Power-On LED indicator

PIN Description
Pin Name               Description
IN1 & IN2              Motor A input pins. Used to control the spinning direction of Motor A
IN3 & IN4              Motor B input pins. Used to control the spinning direction of Motor B
ENA                       Enables PWM signal for Motor A
ENB                       Enables PWM signal for Motor B
OUT1 & OUT2      Output pins of Motor A
OUT3 & OUT4      Output pins of Motor B
12V                       12V input from DC power Source
5V                         Supplies power for the switching logic circuitry inside L298N IC
GND                     Ground pin

Applications:
L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.

Package Includes:
1 x L298N Motor Driver Module
