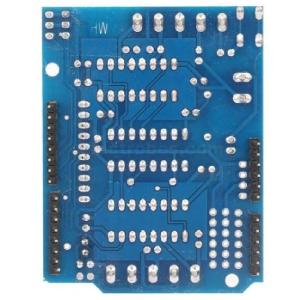

L293D Motor Driver Module

Description

This L293D Motor Driver/Servo Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or stepper motors. That makes it a great shield for any robotic project. This Arduino compatible motor Driver shield is a full-featured product that it can be used to drive 4 DC motor or two 4-wire steppers and two 5v servos. It drives the DC motor and stepper with the L293D, and it drives the servo with Arduino pin9 and pin10.

Specifications:
connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer after soldering pins
H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
Pull down resistors keep motors disabled during power-up
Big terminal block connectors to easily hook up wires (18-26AWG) and power
Arduino reset button brought up top
2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO

Applications:
L293D Motor Driver Shield is versatile shield is designed to control a wide range of motors including DC motors, stepper motors, and servos.

Package Includes:
1 x L293D Motor Driver Module
