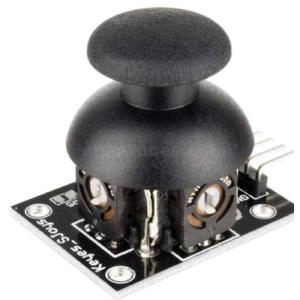

Joystick Module 2 Axis Dual Axis

Description

This is JoyStick Module PS2 Breakout Sensor very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is press down. With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the “hat”. It also contains a switch that is press-able by pushing the “hat”.It also contains a switch that is press-able by pushing the “hat” down. Similar to the XBOX controller.

The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses the 5V power supply, and value, when reading through analog input, would be about 2.5V, a value will increase with joystick movement and will go up till maximum 5V; the value will decrease when the joystick is moved in other direction till 0V.

Specifications:
Pin Configuration
Pin No. Pin Name Description
1 Gnd Ground terminal of Module
2 +5v Positive supply terminal of Module
3 VRx Voltage Proportional to X axis
4 VRy Voltage Proportional to Y axis
5 SW Switch

Applications:
We can use a Joystick Module with Arduino, Raspberry Pi and any other Micro-controllers. We just have to connect the axis Pins VRx and VRy to the ADC Pins of the micro-controller. If you want to use the switch then connect it to the digital Pin of the Micro-controller.
Camera Pan/Tilt Control
Game Input/Control
Robot Control
Analog Input of Parameters
Widely use in DIY projects

Package Includes:
1 x Joystick Module 2 Axis Dual Axis
