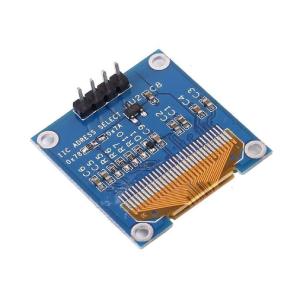

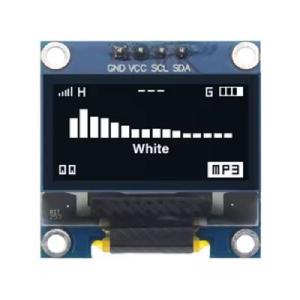

0.96 Inch 128×64 IIC I2C OLED Display Module

Description

This 0.96 inch OLED display is based on a popular SSD 1306 display controller. This OLED display module works on both I2C (TWI). The display is small in size and very crisp. This LCD screen board has a resolution of 128 x 64 pixels. It is ideal for projects, where you want, do display graphics, bitmaps and fonts of various sizes. Since this LED 128X64 I2C Arduino is based on popular display controller libraries are available for Raspberry Pi, Arduino, AVR, PIC and ARM microcontrollers.

Specifications:
High resolution: 128 * 64
Viewing angle: > 160 °
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: Full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ? ~ 70 ?
Module Size: 27.0MM * 27.0MM * 4.1MM
Interface: I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Colour: White

Interface: IIC/I2C
GND: Power Ground
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)

Applications:
It is suitable for a wide range of applications, including IoT devices, wearable gadgets, and DIY electronics projects.

Package Includes:
1 x 0.96 Inch 128×64 IIC I2C OLED Display Module
